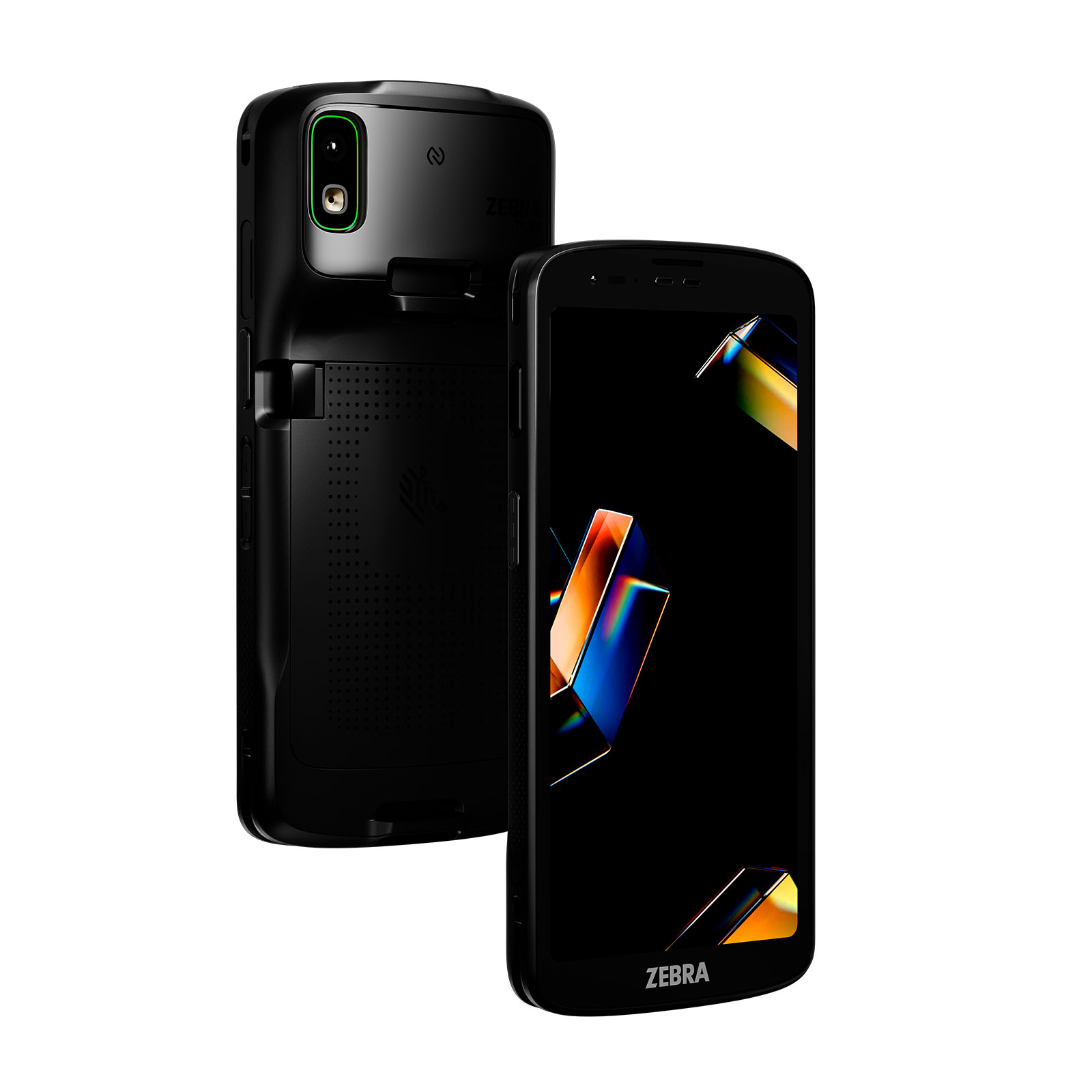

TC201

The new standard in cost-effective mobile computing for the frontline

  • アイコン
  • アイコン
  • アイコン
  • アイコン
  • アイコン
  • アイコン
  • アイコン
  • アイコン
  • アイコン
  • アイコン

Take frontline productivity to a new level with the TC201, the next generation TC2x Series that resets the bar for cost-effective mobile computers. This updated platform delivers a substantial performance leap over legacy devices1, giving workers the speed required for modern operations. The familiar, ergonomic design boasts class-leading ruggedness for unparalleled indoor and outdoor reliability, plus support for cloud-based AI applications. The fastest cellular and Wi-Fi connections keep workers connected—5G 3rd Gen Release 17 and Wi-Fi 7. Unmatched enterprise-grade security features protect your devices, data and networks. Enable powerful new use cases with optional RFID2 and a new advanced range scanner5 that captures barcodes up to 100 ft. (30 m) away, plus the versatility to capture high-resolution color images. And with backward compatibility with most TC2x accessories, migrating to this next evolution device is easy—and affordable.

Product Details

商品詳細

Next generation power, durability and security

Exceptional processing power for exceptional app performance

The TC201 delivers an incredible leap in performance—up to 150%+ over legacy TC2x devices.¹ Now, workers can run all the apps they need, simultaneously.

Keep your devices safe with multiple layers of enterprise-class security

Get timely OS updates to stay on top of emerging security threats with Lifeguard™ for Android™.³ Enable facial recognition for device access with Identity Guardian.⁴ The built-in Bluetooth BLE beacon works with Device Guardian⁴ to locate lost devices—no BLE batteries required. Shield sensitive data and prevent physical hardware attacks with the optional Android Strongbox/Secure Element.⁵ Bring government-grade security to your business with FIPS 140-3 and Common Criteria Certification.

The most rugged and reliable TC2 Series device

The TC201 takes its place as the most rugged TC2 Series device. The waterproof and dustproof device now handles higher drops and 50% more tumbles¹, driving reliability up. Now built for sub-zero temperatures as low as -4°F (-20°C), the TC201 is ideal for workers indoors and out in the field. Two of the most vulnerable components are protected with scratch- and shatter-resistant Corning Gorilla Glass—the display and the scanner exit window.

Cost-effective upgrade with backwards accessory compatibility

Maximize your investment by reusing existing TC22/TC27 accessories, including batteries and charging cradles, while a new boot and screen protector improve durability. For new deployments, high-density ShareCradles reduce backroom footprint, while modular attachments, including a trigger handle or wearable arm mount, quickly adapt the TC201 for intensive scanning or hands-free tasks.

Continuous uptime with perpetual power

Eliminate downtime and keep the TC201 in service all shift long with a user-removable battery and optional hot swap.⁵

Get exceptional voice clarity with advanced AI audio

An advanced AI-based algorithm eliminates acoustic echoes and more background noises—even in environments that challenge traditional noise suppression technologies. Whether you’re speaking to a customer, a co-worker, a supervisor or a voice-enabled application, with advanced AI audio, you can count on crystal clear voice.

More ways to automate data capture

Built-in efficiency with built-in RFID²

Optional integrated RFID opens the door to powerful new use cases. Now workers can read 200 tags per second, up to 3.94 ft. (1.2 m)—with unmatched read sensitivity and accuracy, thanks to the advanced antenna design. Delivery drivers can locate the right package at each stop with the press of a button—and associates can pinpoint the location of a missing item quickly and easily with a Geiger-counter style function.

New best-in-class scanners

Choose the right scan engine for your specific workflow. The premium advanced-range AC670 scanner captures barcodes up to 100 ft. (30 m) away as well as high-resolution color images, streamlining data capture by eliminating the need to bend down or climb to scan. The SR500 standard range scanner features a high-visibility yellow LED aimer and red illumination for precise scanning. Both scanners offer an improved 2D barcode finder for fast and accurate barcode capture in any lighting condition, including bright sunlight, high motion tolerance for scanning on the move, and Zebra’s patented scanning technology to capture virtually any barcode, regardless of condition. For occasional scanning needs, a non-scanner model leverages the integrated camera instead of a dedicated scan engine.⁶

All the fastest wireless networks

Worldwide flexible cellular service

Enable cellular service anywhere in the world with 5G 3rd Gen Release 17. Support for private 5G, CBRS and simultaneous service on two networks provides complete cellular network flexibility. And private 5G network support is ideal for large areas where Wi-Fi may be too complex and costly to deploy.

Wi-Fi 7—setting new standards for Wi-Fi performance

Wi-Fi 7 doubles the speed, bandwidth, and device capacity of Wi-Fi 6 with HBS Multi-Link technology, which eliminates interference, maximizes throughput, and minimizes latency through simultaneous multi-band transmission. Additionally, backward compatibility with the three previous Wi-Fi generations ensures cost-effective network upgrades.

Bluetooth 6—more reliable, more range, all with less power

Bluetooth 6 increases data speeds, range and security, all with reduced power consumption. Zebra DNA’s Device Central adds value by providing users and IT with easy control of Bluetooth accessories by simplifying pairing, unpairing, locating, and troubleshooting of all Bluetooth peripherals.

The Zebra difference—more value, more productivity

Boost functionality and efficiency with Zebra DNA—your software advantage

Easily set up, secure, and manage your devices right out of the box with Zebra DNA Professional—no-cost fundamental software that is pre-loaded and ready to use on every TC201. Want to expand your Zebra DNA toolkit? Zebra DNA Enterprise⁴ takes frontline efficiency to the next level with premium tools that streamline data capture and better connect teams to strengthen collaboration.

Powerful Zebra-only tools for easy app development, wireless network management, device access and management of all your Zebra software

Additional high-value Zebra tools are available for purchase. Quickly and easily build and deploy custom apps that integrate all of the TC201 features with Enterprise Browser. Monitor Wi-Fi and cellular network performance to identify and resolve issues before worker connectivity and productivity are impacted with Wireless Insights. Ensure only authorized users access your devices using facial biometrics and more with Identity Guardian. Quickly locate misplaced devices to prevent asset loss with Device Guardian. Deploy, configure, and manage all of your DNA apps from a single intuitive cloud-based interface with Zebra DNA Cloud.⁴

Triple device functionality and more with Zebra ready-to-use solutions

Add powerful communications capabilities with Zebra Workcloud Sync.⁶ Turn the TC201 into a 2-way radio with push-to-talk (PTT) communications over Wi-Fi and cellular networks—and a PBX handset with a powerful visual interface that simplifies the most complex telephony functions. Give your workers modern communications capabilities with multimedia chat, plus voice and video calling and a To-Do list function to keep track of tasks and task status. With Zebra Workstation Connect or Wireless Workstation Connect, you can turn the TC201 into a wired or wireless workstation on demand, reducing the need to purchase and manage workstations.

Specification

商品仕様

Physical Characteristics
DimensionsL x H x D: 6.5 x 3.0 x 0.49 inches
(165 x 77.95 x 12.5 mm)
Weight8.64 oz. (245 g) with standard capacity battery
9.55 oz. (270 g) with extended capacity battery
Display6.0 inch color Full High Definition+ (2160 x 1080); LED backlight; 450 NITS; optically bonded to touch panel; Corning® Gorilla® Glass
Imager WindowCorning® Gorilla® Glass
Touch PanelMulti-mode capacitive touch with bare or light gloved fingertip input; water droplet rejection; fingerprint-resistant anti-smudge coating
PowerUser removable, rechargeable Li-Ion, PowerPrecision for real-time battery metrics; Standard Capacity: 3800 mAh/14.63Wh; Extended Capacity: 5200 mAh/20.02Wh; Hot Swap battery mode (select SKUs only)
Expansion SlotUser accessible MicroSD card; supports up to 2 TB
SIMOne physical SIM and Dual eSIM
Network ConnectionsWLAN Wi-Fi 7, WPAN (Bluetooth 6.0), WWAN 5G
NotificationsAudible tone; multi-color LEDs; vibration
KeypadOn-screen keypad
Voice and AudioStereo speakers; two microphones; audio headset support via USB-C port or Bluetooth wireless headset; BLE Audio 5.3 compatible; VoNR; VoLTE; Cellular Circuit Switch voice; HD voice; VoIP including full band (FB), SWB Audio, and PTT support
ButtonsProgrammable buttons: dual scan buttons, push-to-talk button, volume up/down buttons
Interface PortsUSB Type C (USB 3.1); Back I/O (USB 2.0)
Performance Characteristics
CPUQualcomm® Dragonwing™ Q-6690 processor; up to 2.0 GHz
Operating SystemAndroid; for supported Android versions, visit: www.zebra.com/android-versions
Memory6 GB LPDDR5 RAM/64 GB UFS 2.2 Flash
8 GB LPDDR5 RAM/128 GB UFS 3.1 Flash
SecurityAndroid Strongbox with Secure Element IC (select SKUs only); FIPS 140-3 Validated (ISO 19790) and Common Criteria certified (ISO 15408); supports Secure Boot and Verified Boot
User Environment
Operating Temp.-4°F to +122°F (-20°C to +50°C)
Storage Temp.-40°F to +158°F (-40°C to +70°C)
Humidity5%-95% non-condensing
SealingIP68 and IP65 per IEC 60529 standard
Tumble Specification750 1.6 ft. (0.5 m) tumbles
750 3.3 ft. (1.0 m) tumbles with rugged boot
Angled Scanner:
500 1.6 ft. (0.5 m) tumbles
500 3.3 ft. (1.0 m) tumbles with rugged boot
Drop SpecificationsExceeds MIL-STD-810H:
5 ft. (1.53 m) to concrete at +14°F to +122°F (-10°C to +50°C)
6 ft. (1.83 m) to concrete @ room temperature
With rugged boot:
6 ft. (1.83 m) to concrete at 14°F to +122°F (-10°C to +50°C)
7 ft. (2.13 m) to concrete @ room temperature
Angled Scanner:
4 ft. (1.22 m) to concrete at +14°F to +122°F (-10°C to +50°C)
With rugged boot: 5 ft. (1.53 m) to concrete at +14°F to +122°F (-10°C to +50°C)
Electrostatic Discharge (ESD)±15 kV air discharge, ±8 kV direct discharge; ±8 kV indirect discharge
Interactive Sensor Technology (IST)
Light sensor: automatically adjusts display brightness
Motion sensor: 3-axis gyroscope, 3-axis accelerometer
Magnetometer: eCompass automatically detects direction and orientation
Pressure sensor/barometer: WWAN SKU only
Proximity sensor: Automatically disables the display and touch input when the device is positioned close to the ear
Data Capture
ScanningAC670 Advanced Range Color 1D/2D Scan Engine;
SR500 1D/2D Scan Engine;
SR560 60° angled 1D/2D Scan Engine (available in APAC and LATAM);
Camera-based scanning, leveraging Zebra’s advanced decoder library for accurate and efficient data capture—complimentary with the device
Rear Camera16 MP auto-focus camera with user controllable LED flash
Front Camera5 MP; fixed focus
NFCNFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards; Mifare Desfire EV1, EV2, EV3, EMVCo RR2 compliant; NFC Forum tags 2,3,4,5; Host Card Emulation; Contactless Payment Support; Google Wallet support; VAS (Value Added Services); Apple ECP1.0 and ECP2.0; Apple VAS and Google Smart Tap certified; FeliCa M-Class Certified; VAS Library/SDK (Apple, Google and Samsung Wallet)
Integrated RFID2Short range integrated UHF RFID; up to 3.94 ft. (1.2 m); reads > 200 tags per second; EPC Class 1 Gen2; EPC Gen 2 V2; EU 865-868 MHz and US 902-928 MHz; (Select SKUs only)
Wireless PAN
BluetoothConfigurable Class 1 and 2; Bluetooth V6.0 with 2X2 Tx; Chipset-enabled secondary BLE beaconing support
Wireless LAN
RadioIEEE 802.11 be/az/mc/ax/ac/n/a/g/b/d/h/i/r/k/u/v/w; Tri-band (2.4 GHz, 5 GHz, 6 GHz), 2x2 MU-MIMO; Wi-Fi CERTIFIED 7™; MLO (Simultaneous Transmit and Receive MLMR) in Tri-band and Dual-band modes: 2.4+5+5, 2.4+5+6, 5+5+6, 5+6, 5+5, 2.4+5, 2.4+6; Dual Band Simultaneous, High Band Simultaneous; IPv4, IPv6; Wi-Fi Aware
Data Rates2.4 GHz: 802.11b/g/n/ax/be — 20 MHz – up to 344 Mbps;
5 GHz: 802.11a/n/ac/ax/be — 20 MHz, 40 MHz, 80 MHz, 160 MHz - up to 2882 Mbps;
6 GHz: 802.11ax/be — 20 MHz, 40 MHz, 80 MHz, 160 MHz, 320 MHz - up to 5764 Mbps
Fast Roam802.11r Fast BSS Transition; PMK Caching; Cisco CCKM; OKC
Operating ChannelsChannel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Channel 36-165 (5150-5850 MHz):
36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165
Channel 1-233 (5925-7125 MHz);
Channel Bandwidth: 20, 40, 80, 160, 320 MHz
Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency.
Security and EncryptionWPA3 Enterprise 192-bit mode, GCMP-256 — EAP-TLS; WPA3 Enterprise, AES-CCMP-128, GCMP-256 — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, EAP-PWD;
WPA3 Personal (SAE, SAE-EXT), AES-CCMP-128, GCMP-256; WPA/WPA2 Enterprise, TKIP and AES-CCMP-128;
WPA/WPA2 Personal (PSK), TKIP and AES-CCMP-128; Enhanced Open (OWE), AES-CCMP-128, GCMP-256;
WEP 40 bit and 104 bit;
WAN device only: EAP-SIM, EAP-AKA, EAP-AKA Prime
CertificationsWi-Fi Alliance Certifications: Wi-Fi CERTIFIED 7; Wi-Fi CERTIFIED 6 (Wi-Fi 6E); Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED n; WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Enhanced Open; WMM (Wi-Fi Multimedia); WMM-Power Save
WMM-Admission Control; Voice Enterprise; Wi-Fi Direct; Wi-Fi Agile Multiband; Wi-Fi QoS Management; Wi-Fi Optimized Connectivity; Passpoint
Wireless WAN, Data and Voice Communications
Radio Frequency Bands7Rel-17, Dual SIM/Dual Standby, VoLTE, Gigabit LTE-A, 5G NR Sub-6 (NSA, SA), LTE/NR Carrier Aggregation (CA), LTE CA - Up to 3DLCA, 2ULCA, NR CA: Up to 3DL, 2UL
Bands:
5G FR1:
n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79
4G: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/34/38/39/40/41/42/43/48/66/70/71/106
3G: B1/2/4/5/6/8/19; 2G: (ROW SKU only) 850/900/1800/1900
4x4 DL MIMO6:
5G FR1: n1/2/3/7/25/30/38/40/41/48/66/70/77/78/79;
4G: 1/2/3/4/7/25/30/38/40/41/42/43/48/66/70;
Private Cellular: B48/106
GPS (WWAN SKU only)GPS, GLONASS, Galileo, Beidou, QZSS; Dual-Band GNSS—concurrent L1/G1/E1/B1; (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, BeiDou); a-GPS; supports XTRA
MultimediaWi-Fi Multimedia™ (WMM) and WMM-PS; TSPEC
General Certifications
Google ARCore certified; Android Enterprise Recommended (AER) certified
Environmental Compliance
RoHS Directive 2011/65/EU; Amendment 2015/863; REACH SVHC 1907/2006; EPEAT Certified; For a complete list of product and materials compliance, please visit: www.zebra.com/environment
Warranty
Subject to the terms of Zebra’s hardware warranty statement, the TC201 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For the complete warranty statement, please visit: www.zebra.com/warranty
Recommended Services
Zebra OneCare™ Select support services; Zebra Visibility Services—VisibilityIQ™ Foresight; Professional Services Gold Build; For information on Zebra services, please visit www.zebra.com/services
Footnotes
1. Compared to TC21/TC26/TC22/TC27
2. Availability for RFID SKUs: EMEA in Q4 2026; North America, APAC and LATAM in Q1 2027
3. Requires a Zebra OneCare plan
4. Requires a license
5. Available on select SKUs
6. Not available in all regions
7. Actual band support may vary by country or carrier. Please contact Zebra for more details
Zebra DNA
For information on Zebra DNA, visit www.zebra.com/zebra-dna. Zebra DNA features vary by model; a support contract may be required. To learn what solutions are supported, visit: https://developer.zebra.com/zebra-dna

Repair/maintenance

修理・保守

DS2208

保守加入のメリット

  • 敏速な代替機の入手、又は迅速な修理対応が可能
  • スポット修理に比較して、修理費用が割安
  • 修理費用の年間予算化が可能な上、TCOの削減が出来ます
  • ファームウエアのバージョンアップが可能になります

保守契約の種類

サービスフロムスタート

ハードウエア購入と同時(又は30日以内)にご契約が必須
複数年一括契約(機種により3年、5年など)があります。

※1年毎の随時保守契約に比べて割安にWarrantyでは補えない導入時からの安心サポート

サービスタイプ
Zebra OneCare Essential SSE リペアセンター修理、
センドバック方式 故障機受領後、3営業日以内に修理ご返却
主にモバイル製品対象
Zebra OneCare Select SSS 故障コール受付の翌営業日(午後受付分翌々営業日)に代品を発送
リペアセンターに送られた故障機は、修復後次の代替機になります。
主にワイヤレス製品と50台以上のスキャナ製品対象

SSSは、リペアセンターへの障害機返却状況に応じて、追加費用が発生することがあります。

  • 障害コールから30日以内に、障害機がリペアセンターに到着しない時、製品価格に相当する金額
  • 1年間に返却された障害機の内、「異常なし」(NTF)が15%を超えた部分の台数に¥11,000を乗じた金額

保守加入後に修理が発生したら「修理について」をご覧ください

モバイル製品のサービスフロムスタートは全て液晶ディスプレーまでフルサポートです!!

例えば、このような破損状況でも···

追加費用なしで修復します



随時契約

保守契約はお客様のご希望に応じて何時からでも入れます。
1年又は3年一括契約となります。

サービスタイプ
Zebra OneCare Service Center Essential SCE リペアセンター修理、センドバック方式
故障機受領後、3営業日以内に修理ご返却
主にモバイル製品対象
Zebra OneCare Service Center Select SCS 故障コール受付の翌営業日(午後受付分翌々営業日)に代品を発送
リペアセンターに送られた故障機は、修復後次の代替機になります。
主にワイヤレス製品とスキャナ製品対象

SCSは、リペアセンターへの障害機返却状況に応じて、追加費用が発生することがあります。

  • 障害コールから30日以内に、障害機がリペアセンターに到着しない時、製品価格に相当する金額
  • 1年間に返却された障害機の内、「異常なし」(NTF)が15%を超えた部分の台数に¥11,000を乗じた金額

※液晶ディスプレーの修理は保守契約対象外で、別途修理費が発生します。
随時契約料金に+50%の料金追加で、液晶ディスプレー修理を保守契約に含められます !!



保守対象外について

下記製品は保守対象外となります。
別途新品購入をお願い致します。

  • 各種ケーブル製品
  • AC 電源
  • 無線アンテナ製品
  • 充電器
  • バッテリー製品
  • その他アクセサリ製品



保守締結に必要な書類

保守締結にあたり、事前に下記の情報が必要となります。

  • 対象機器のシリアル番号
  • 保守契約期間
  • 保守締結されるお客様情報

不明な点は随時ご相談下さい。
